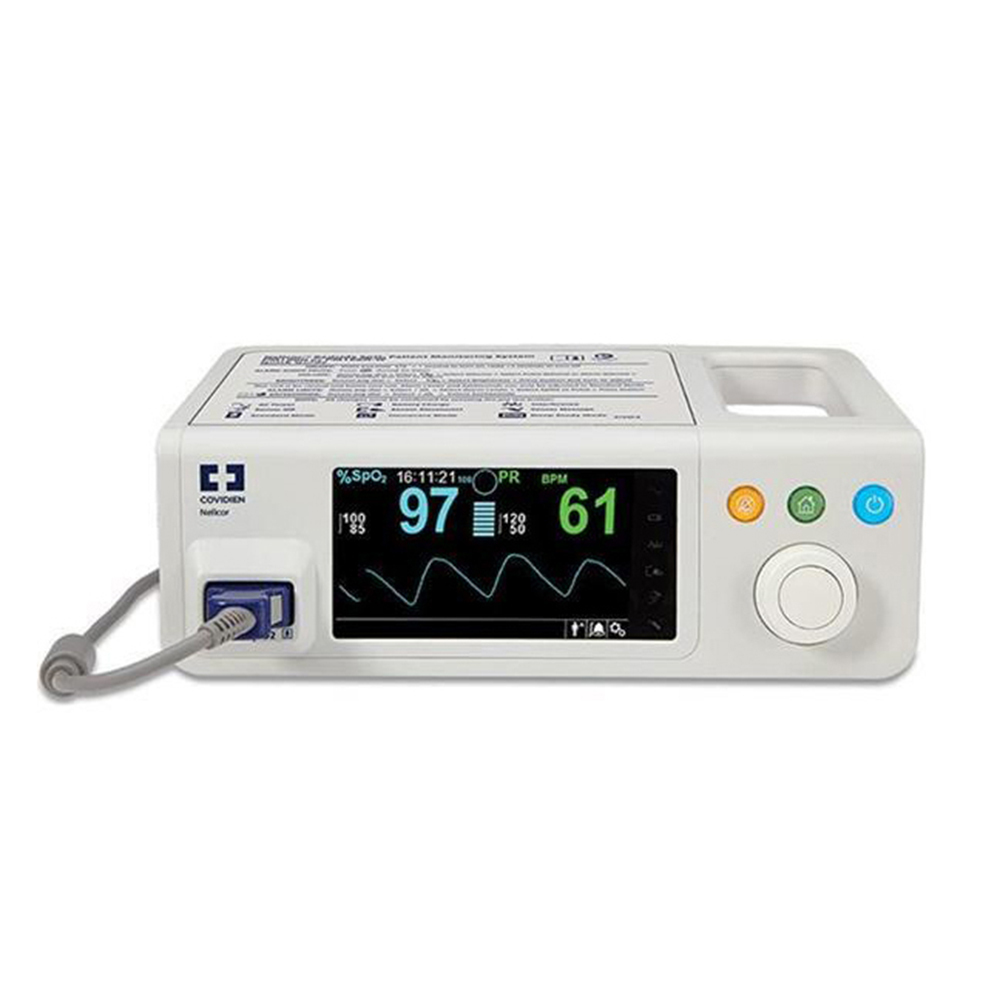

Nellcor Bedside SpO2 Patient Monitoring System PM100N

Sold as Each

The Nellcor bedside SpO2 patient monitoring system, PM100N, provides at-a-glance access to real-time patient respiratory status information including continuous SpO2 and pulse rate monitoring and trending data. The compact monitor can be placed at the patient's bedside or easily transported using the convenient, built-in handle. With home care and sleep study modes, the PM100N has functionality for non-hospital settings. The system has password-protection to ensure safe utilization by non-clinical users, and the ability to conveniently download data for further data analysis.

The monitor incorporates the latest Nellcor digital signal processing technology for accurate, reliable readings even during low perfusion, motion, and other forms of signal interference, as well as SatSeconds alarm management to help distinguish meaningful alarms from transient events. Supplied with a Reuseable Adult Finger Sensor.


  • Displays plethysmographic waveforms, pulse amplitude and real-time SpO2 and pulse rate data
  • 96-hour trend memory with data captured every four seconds for quick review of changes in patient status
  • Includes SatSeconds alarm management, a clinician-controlled feature that has been proven to reduce nuisance alarms2
  • Password protected homecare and sleep study modes
  • Both homecare and sleep study modes meet IEC 60601-1-11 for home health equipment to promote the safe and effective use of the monitor by users in the non-hospital setting


  • Accurately assesses patients' status with pulse oximetry measurements of ± 2 for 70% to 100% saturation, and low saturation accuracy of ± 3 for 60% to 80%


  • Reacts to patient status with technology that displays patient oxygenation and pulse rate more quickly than other technologies

Motion Tolerance:

  • Accurately assesses patients' status during periods of movement or noise, avoiding dropouts or delays

Flexible, Affordable and Intuitive:

  • Displays real­ time SpO2 and pulse rate measurements, plethysmographic waveforms and pulse amplitude
  • SatSeconds alarm management
  • Sleep Study mode
  • Homecare mode
  • Adult, Pediatric, Neonate modes
  • Intuitive, easy­ to­ read, color, multiple­ language user interface with on­ screen help messages
  • Easy­ to­ use jog dial interface
  • Compact, portable, durable design with built­ in handle
  • Variable pitch beep tone for point­ by­ point differentiation in SpO2
  • 96-hour trend memory


  • Bedside SpO2 Patient Monitoring Unit
  • (1) Reuseable Finger Sensor
  • (1) Sensor Cable
  • (1) Power Adapter
  • User Manual

Please note: Available with Nellcor Analytics Software for Free.

  • Monitor - 12 Months Warranty
  • Reuseable Sensor - 12 Months Warranty
  • Single use Sensors - 12 Months Warranty
Technical Specifications
Dimensions Width: 10.04"
  Height: 3.23"
  Depth: 6.10"
Weight 1.36kg
Performance Measurement Range: SpO2 : 1% to 100%
  Pulse Rate: 20 to 250 beats per minute (bpm)
  Pulse Amplitude: 0.03% to 20%
Measurement Accuracy
Saturation Adult: 70% to 100% ± 2 digits
  Adult and Neonate Low Sat: 60% to 80% ± 3 digits
  Neonate: 70% to 100% ± 2 digits
  Low Perfusion: 70% to 100% ± 2 digits
  Adult and Neonate with Motion: 70% to 100% ± 4 digits
Pulse Rate Adult and Neonate: 20 to 250 bpm ± 3 digits
  Low Perfusion: 20 to 250 bpm ± 3 digits
  Adult and Neonate with Motion: 20 to 250 bpm ± 5 digits
Instrument Power Requirements 100 to 240 VAC, 50/60 Hz, 45 VA
Fuse Rating Fast acting: 2 A 32VAC/DC
  Fast acting 500 mA 32VAC/50DC
Battery Type: Lithium Ion
  Battery Capacity: Minimum of five hours using new, fully charged battery with no alarms
Operating Temperature Instrument 5 °C to 40 °C (41 °F to 104 °F)
  Transport/Storage Temperature (in shipping carton): -20 °C to 60 °C (-4 °F to 140 °F)
  Operating Humidity: 15% to 93% non condensing
  Operating Altitude: -170 m to 4877 m (-557 ft to 16,000 ft)
Output Trend data download via wired or USB for archiving or data analysis
Display/Indicators Pulse amplitude indicator (eight segments)
  Visual indicators: Pulse search, audible alarms silenced or off, interference indicator, battery charging, and SatSeconds alarm management clock, pleth wave form
Alarms SatSeconds alarm management
  Audible and Visual alarms for high/low saturation and pulse rate, low battery, sensor off, and sensor disconnect
  Categories: Patient status and system status
  Priorities: Low, medium and high
  Notification: Audible and visual
  Setting: Default, institutional and last setting
  Alarm system delay: <10s
Available Modes Standard - Hospital, hospital type facilities, and intra hospital transport
  Homecare - Simplified monitoring for use in the home by caregivers
  Sleep Study - Muted audible and visual queues to aid sleep studies
Connectivity Supports wired and USB trend data export to an external personal computer for archiving or data analysis
  Nurse call capability


Barcode # PM100N-1A
Brand Nellcor
Unit Of Measure Each
