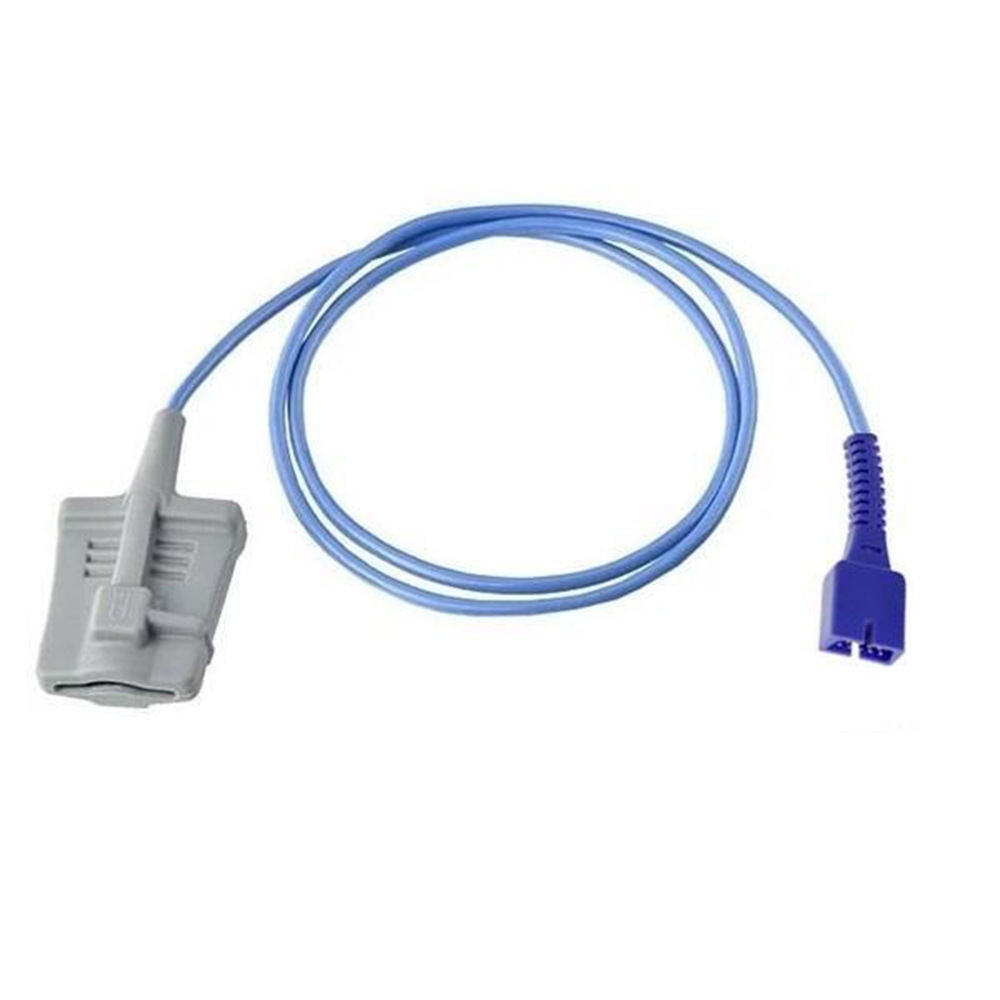

Flexible SpO2 Reusable Sensor - Large

Sold as Each

Flexible SpO2 Sensor is a versatile sensor for short term and continuous monitoring in a broad range of patient sizes. This product is engineered for dippable cleaning, enhancing workflow efficiency and reduce infection transmission in the ICU.


  • Soft rubber pulse oximetry sensor
  • Reusable
  • Designed for short-term (less than six hours) continuous monitoring for the majority of patients
  • Available in two sizes, large and small, for adult and pediatric patients weighing at least 20 kg (40 lbs.)
  • Features the pulse oximetry you trust - Nellcor SpO2 with OxiMax technology
  • Forward and backward compatible with your existing Nellcor - compatible monitors
  • Designed for short-term (<6 hours) continuous monitoring for the majority of your patients


  • Noninvasive continuous or spot-check monitoring of SpO2 and pulse rate
  • Indicated for use with monitoring systems that use Nellcor Oximax and Nellcor compatible pulse oximeters


Designed for dippable cleaning. It is important because:

  • Probes can act as vectors of infection transmission
  • Meets the current home-care standard (IEC 60601-1-11:2015)
  • It also meets required operating conditions of:
    • 0 to 40 C operating temperature
    • 15 to 95 percent non-condensing RH
    • 620 to 1060 hPa atmospheric pressure
  • Routine cleaning or low-level disinfection is recommended when using the sensor on the same patient


  • SpO2 accuracy: 70–100%: 2.5 digits (ARMS)
  • Pulse rate accuracy: 20–250 BPM: ±BPM

Additional Information:

  • Validated by clinical tests, where the measured values of the sensors were compared with those of the arterial co-oximetry in healthy adult subjects over the specified functional oxygen saturation range
  • These values were validated on the following monitors: Nellcor PM1000N, N600x, N560, N395
  • Pulse rate accuracy was verified by simulated bench tests to ensure entire range was verified
  • These values were verified on the following monitors: Nellcor PM1000N, N600x, N560, N395
LED Wavelength Red: 660 nm peak
  Infrared: 885 nm centroid
Output Power <5 mW
Operational Temperature Range 0 to 40 C (32 to 104 F)
Storage and Transport Temperature Range -40 to 70 C (-40 to 158 F)
Relative Humidity Range 15-95% non-condensing
Atmospheric Pressure Range 620 hPa to 1060 hPa
Stabilization Time (from storage to operational conditions) Up to 20 minutes
Length Large and small, 925 mm, includes a connector and sensor housing
Patient Weight Ranges The large and small sensors are intended for use on adult and pediatric (excluding infant and neonatal) patients weighing more than 20 kg


Barcode # FLEXMAX
Brand Nellcor
Unit Of Measure Each
