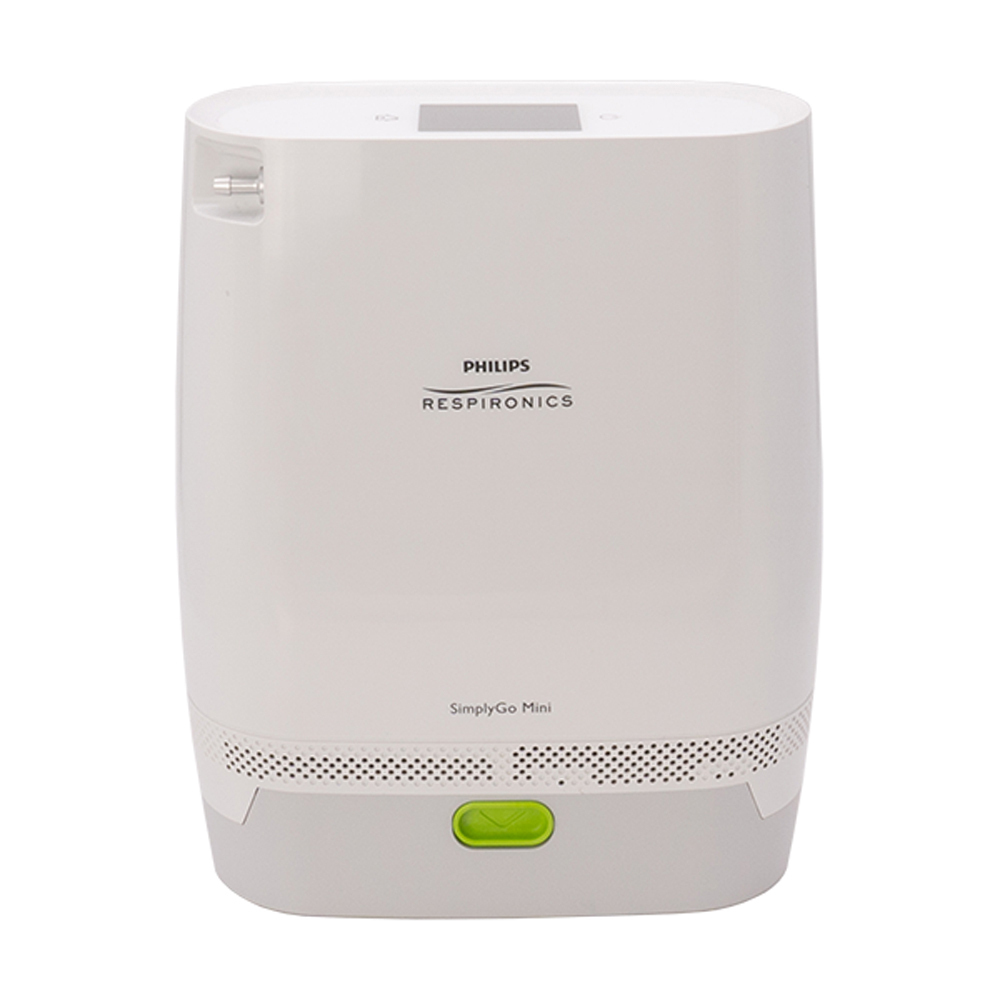

Philips SimplyGo Mini Portable Oxygen Concentrator - Extended Battery

Sold as Each

The smallest and lightest POC ever developed by Philips Respironics, SimplyGo Mini is built for today’s patients. It is designed and rigorously tested to be reliable and durable in real-world environments, undergoing the same testing regimen as its counterpart, the proven SimplyGo Mini is built for today’s patients with busy and mobile lifestyles.

Features:

  • Lightweight and Intuitive - offers an attractive, sleek and light weight design, easy-to-remove external battery and intuitive easy-to-read user interface, Philips SimplyGo Mini is the smallest and lightest POC ever developed by Philips Respironics
  • Intuitive User Interface - color LCD Touchscreen Interface is smooth to the touch and highly responsive, it provides immediate access to the SimplyGo Mini’s 5 Pulse Dose settings and device tools for a personalized therapy experience
  • System with extended battery - includes SimplyGo Mini portable oxygen concentrator, carrying case, one extended rechargeable lithium ion battery, DC and AC power cords, accessory bag, and user manual. Extended battery has a duration up to 9 hours (pulse setting of 2 at 20 BPM), resulting in a total weight of 6 lbs
  • Pulse Dose Oxygen Therapy - delivers oxygen in pulses during inhalation. With 5 levels of pulse therapy settings, the Simplygo Mini produces up to 1L/minute on the maximum setting of 5, the lowest it provides is 220 ml/min on the setting of 1 and oxygen purity runs between 87% and 96%, with an average of around 93%
  • Five pulse dose Flow settings and pulse volumes: Setting 1: 11ml, 220 ml/min, Setting 2: 22ml, 440 ml/min, Setting 3: 33ml, 660 ml/min, Setting 4: 44ml, 880 ml/min and Setting 5: 50ml, 1000 ml/min
    • Note: Nominal pulse volume at 20 BPM, Maximum minute volume output
  • Discreet Design - SimplyGo Mini carry case is like a satchel with a shoulder strap. It features discreet colouring and design, similar to a messenger bag in appearance. The padded carry case wraps tightly around the SimplyGo Mini device to give maximum protection, with the top exposed so that the user can access the touchscreen interface at any given time
  • SimplyGo Mini has alarms to alert the user of issues such as low battery levels, low oxygen, absence of flow, technical errors

Inclusions:

  • 1 x SimplyGo Mini Portable Oxygen Concentrator
  • 1 x Carrying Case
  • 1 x Rechargeable Lithium Ion Battery
  • 1 x DC Power Cord
  • 1 x AC Power Cord
  • 1 x Accessories Bag
  • 1 x User Manual

Please note:

  • All patients needing home oxygen in Australia must have a Doctors prescription issued to them for treatment
  • This includes a full diagnosis and physiological assessment, including blood gases to ensure oxygen therapy is the right course of action for each situation

Warranty:

  • SimplyGo Device: 3 years
  • Battery: 3 Months
  • Sieve Bed: 1 Year
Type Value
Oxygen Concentrations At least 87% at all settings (maximum of 96%)1Based on atmospheric pressure of 14.7 psia (101 kPa) at 70° F (21° C)
Outlet Pressure 20 psig
Flow settings and pulse volumes

Setting                                         Nom. pulse vol. at 20 BPM                                 Max. minute vol. output

1                                                                  11ml                                                              220 ml/min

2                                                                  22ml                                                              440 ml/min

3                                                                  33ml                                                              660 ml/min

4                                                                  44ml                                                              880 ml/min

5                                                                  50ml                                                             1,000 ml/min

Sound Level 43 dBA typical at settings 2 and 20 BPM; 46 dBA typical at settings 5 and 20 BPM
Physical Characteristics
Size With standard battery: 9.4 in. x 8.3 in. x 3.6 in. (23.9 cm x 21.1 cm x 9.1 cm)With extended battery: 10.2 in x 8.3 in x 2.6 in (25.9 cm x 21.1 cm x 9.1 cm)
Weight 5 lbs. (2.3 kg) with standard battery installed6 lbs. (2.7 kg) with extended battery installed
User Interface Touch screen LCD
Operating Conditions
Operating Temperature 41° F to 95° F (5° C to 35° C)
Relative Humidity 15% to 93%
Altitude Up to 10,000 ft. (3,048 m)
AC Power
Input 100 to 240 VAC, 50/60 Hz
Output 19 VDC, 6.3 A max
Power Consumption 120 W while charging
DC Power
Input 12 - 16 VDC
Output 19 +/- 5% VDC, 6.3 A
Audible Alarm
Sound Level 56 dBA or greater when measured at 1 m
Alarm Type No breath, low oxygen concentration, high breath rate, technical fault, low battery, no flow, depleted battery, external power failure
Battery
Chemistry Lithium ion 14.4 VDC (nominal)
Battery Options Standard battery, Extended battery (equals two standard batteries)
Dimensions Standard battery: 7.9 in. x 3.6 in. x 1.0 in. (20.1 cm x 9.1 cm x 2.5 cm)Extended battery: 7.9 in. x 3.6 in. x 1.9 in. (20.1 cm x 9.1 cm x 4.8 cm)
Weight Standard battery: 1.1 lbs. (0.50 kg)Extended battery 2.1 lbs. (0.95 kg)
Watt-hour Rating per Standard Battery 3.4 Ah x 3.6V x 8 cells = 97.9 Wh per standard battery
Charge Time Standard battery: 4 hours maximum and Extended battery: 8 hours maximum
Typical Battery Duration on Pulse Setting 2, 20 BPM
Standard battery Up to 4.5 hours
Extended battery Up to 9 hours
Warranty Duration 3 Years



SKU Phi1113605
Barcode # 1113605
Brand Philips
Unit Of Measure Each
