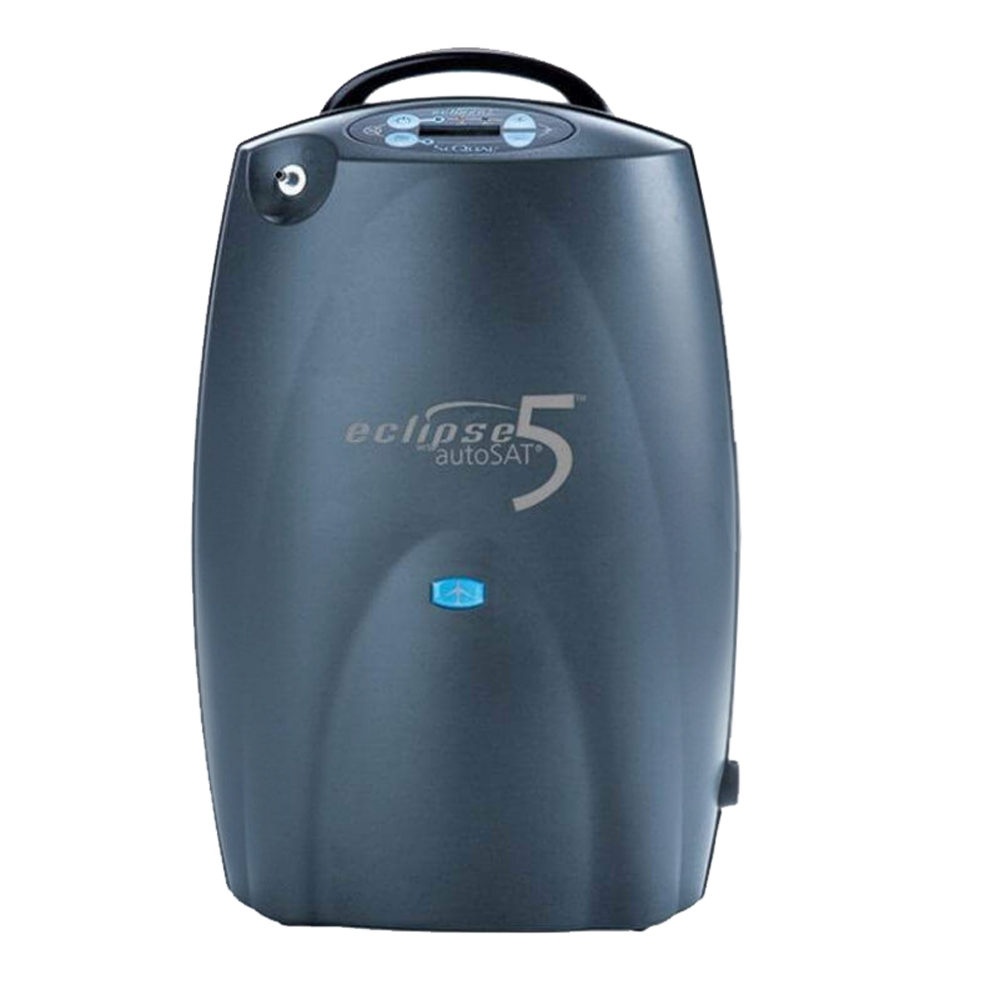

Eclipse 5 SeQual Portable Concentrator

Sold as Each

The SeQual Eclipse 5 is the newest and most improved upon in the Eclipse line by SeQual. It has the same great features, oxygen settings and battery life as the Eclipse 3, only with better overall power and the ability to run on DC power and charge at the same time. If you are looking to get an Eclipse, this would be the one to get. This is a portable oxygen concentrator that provides a wide range of both continuous flow and pulse dose oxygen settings.

The continuous flow doses are from 0.5 to 3 LPM (Liters Per Minute) in increments of 0.5, so this is an ideal portable concentrator for those who need a precise dosage to stay saturated comfortably.

The pulse doses range from 16 to 192 mL in 9 settings, so most people who need pulse dose oxygen with have their needs met by the Eclipse 5. (Able to supply is equivalent of 1 – 5.0 LPM in Pulse Dose)

You can also depend on an average purity of around 90%. The Eclipse 5 has SeQual's AutoSAT technology, which helps you maintain the same amount of oxygen consistently, even as your breath rate changes.

The Eclipse 5 is only 8.5kg with the battery inside and is 49cm tall, 31.2cm wide and 18cm deep. Even though it's one of the heavier portable oxygen concentrators on the market, which it needs the extra size to house the extra settings and features, it is easy to move about with the help of the mobile cart that is supplied with it.

The mobile cart is slim and light, with wheels that make it very easy to maneuver around wherever you need to go. The telescoping handle allows you to push it down and out of the way when you are sitting still, and it can be easily folded up for transport.

The AC and DC adapters for the Eclipse 5 are smaller and more powerful than the ones for the Eclipse 3, so they will take up less room as you travel. The concentrator is also now fully functional and able to be charged and ran safely and simultaneously in a vehicle as you travel. This saves a lot of time and battery life for when you need it.


  • AutoSAT Technology will maintain a steady level of oxygen with Adjustable Rise Time and Bolus Size
  • Continuous flow from .5 to 3 LPM
  • Pulse Dose volume ranges from 16 to 192 mL
  • Able to supply equivalent of 1 – 5.0 LPM in Pulse Dose
  • In Pulse Dose Mode, if an inspiratory effort is not detected, the device will deliver a continuous flow of oxygen; continually searching for a breath every 15 seconds
  • All flow settings (continuous and pulse) are available while the machine is operating on DC power
  • Three rise time options: slow, medium, and fast with three adjustable pulse dose sensitivity settings
  • Battery recharges while the unit is connected to any heavy-duty DC power supply
  • Easy access to removable battery with new contemporary mobile cart design


  • Eclipse 5 unit
  • Battery
  • AC power adapter
  • DC power adapter
  • Cart with telescopic handle
  • Accessory bag
  • Cannula
  • Manual

Please note:

  • All patients needing home oxygen in Australia must have a Doctors prescription issued to them for treatment
  • This includes a full diagnosis and physiological assessment, including blood gases to ensure oxygen therapy is the right course of action for each situation


  • 3 years limited warranty
Weight6.8kg Unit Only
8.5kg Unit with Battery
Oxygen flowContinuous
 Flow settings 1 - 3LPM
Oxygen flowPulse dose
 Flow settings equivalent to 1 - 5LPM
Oxygen Concentration1-5 LPM at 90% +5.5/-3%
Battery Charging Time1.8 to 5 hours to reach 80% battery capacity (dependent upon flow level)
Near silent operationLow sound level of just 40 dBA
PowerAC Power: 100-240 VAC, 50-60 Hz
 DC Power: 12 V nominal
 Battery: 97.5 W-Hr battery packs each containing 7.92 gm of lithium content
Trigger SensitivityNegative pressure between -.135 to -.37 cm
Operating Ranges and Intended for UseAltitude Range: Sea level to 13,123
 Temperature Range: 50 degrees to 104 degrees F at 82 degrees F dew point, non-condensing
IndicatorsGreen Light: Normal
 Yellow: Caution, less than 85% power
 Red Flashing: warning, less than 70% power
Alarms / AlertsUnit Malfunction
 Low Battery
 Loss of unit power
 Oxygen flow outside normal limits
 Low Therapeutic Oxygen Output
 No Inspiration detected in Pulse Dose Mode
Battery Duration: (Approx - Depends on Battery care & maintenance)Continuous of 1Lpm: Up to 3.7 hours
 Continuous of 2Lpm: Up to 2.0 hours
 Continuous of 3Lpm: Up to 1.3 hours
 Setting of 1: Pulse: Up to 5.4 hours
 Setting of 2: Pulse: Up to 5.1 hours
 Setting of 3: Pulse: Up to 4.9 hours
 Setting of 4: Pulse: Up to 4.0 hours
 Setting of 5: Pulse: Up to 3.7 hours
 Setting of 6: Pulse: Up to 3.5 hours
 Setting of 7: Pulse: Up to 2.5 hours
 Setting of 8: Pulse: Up to 2.0 hours
 Setting of 9: Pulse: Up to 1.7 hours


Barcode # 6900AU-SEQ
Brand Eclipse 5
Unit Of Measure Each
