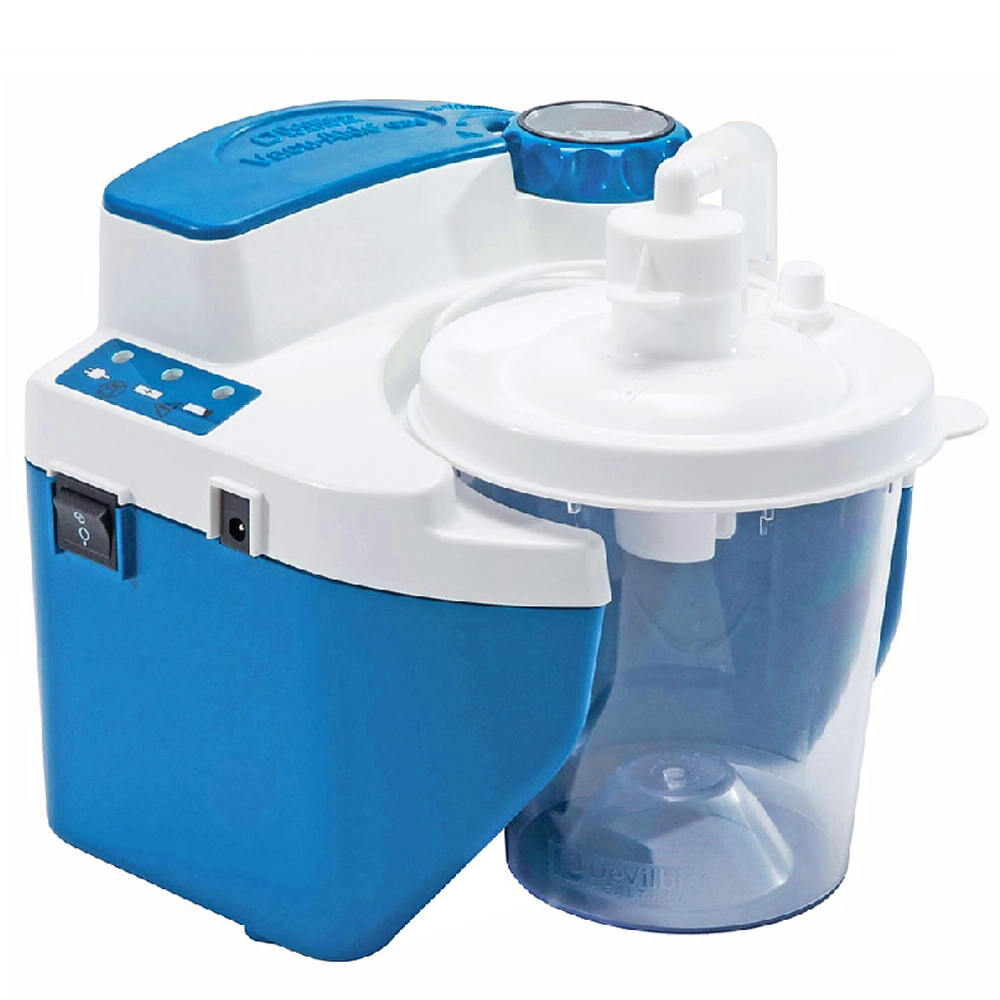

DeVilbiss Vacu-Aide QSU

Sold as Each

The Vacu-Aide® QSU is designed to perform effective airways suctioning in a comfortable, safe and hygienic way.

With a suctioning pressure range from 50 - 550 mmHg delivered at 27 l/min flow rate, it is designed to suit most applications and meets the stringent ISO standards for field and transport use.

  • Easy to operate
  • Easy to clean
  • Personal carry bag
  • Simple to operate

Operating the Vacuaide QSU is simplicity itself. The one button operation begins the suctioning and the display clearly indicates battery (7314P) and power status. The required pressure can be adjusted with the pressure gauge. The large easy grip adjustment gauge rotates making it easy to view and check that the pressure is set correctly.

Travelling with the VacuAide QSU

  • The package comes complete with a multi-voltage switch mode power supply and 12 V DC car adaptor (7314P model only) meaning you will be ready for use straight away. Extra canisters and filters are available from your local supplier.

800 ml Collection Jar Canister, Lid & Filter

  • The 800ml disposable canister has been designed primarily with hygiene and safety in mind. The anti-spill feature retains the contents in the bottle should it be tilted. There is also an integrated automatic float shut off system which prevents overflow of liquid and damage to the unit.
  • The canister lid is made from a flexible material making it easier to remove when necessary
  • The new bacterial filter design is integrated into the canister lid making it extremely simple to exchange

Go anywhere with the new personal carry bag

  • The QSU and its accessories sit neatly in the personal carry bag allowing you to take and use the unit at all times
  • There are convenient pockets to store the power supply and accessories
  • The case has been designed so the QSU does not have to be removed from the bag to operate it
  • A pulldown flap allows the care giver to easily view any contents in the canister. There are also openings for attaching the power supply and a transparent window to view the pressure set.

Features:

  • Vacuum adjustment allows 50 - 550 MmHg pressure range
  • 27 L/min air flow
  • Quieter Model - Low sound level than original model
  • Innovative container assembly features integrated bacteria filter to prevent back flow
  • Allows required suction pressure to be easily set and viewed
  • Required pressure can be adjusted with the pressure gauge
  • Easy to operate with flow regulator knob
  • Built to ISO 10079-1 and meets American Association for Respiratory Care (AARC) guidelines
  • Suitable for neonate to adult users
  • Integrated gauge and flow regulator for easy item use
  • Comes with power cord, battery, collection jar, filter and 6 foot suction tubing
  • Class II multi-voltage switch mode power supply, allowing operation on any AC voltage
  • Additional features for the portable 7314P model
  • Complete with 100 - 240 V power supply and 12 V DC car adaptor
  • Can be operated discreetly inside the carry case
  • Up to one-hour operation (internal battery runtime)
  • QSU and its accessories sit neatly in the personal carry bag
  • Bag has convenient pockets to store the power supply and accessories
  • The case has been designed so the QSU does not have to be removed from the bag to operate it
  • Pulldown flap allows the caregiver to easily view any contents in the canister. There are also openings for attaching the power and a transparent window to view the pressure set

Inclusions:

  • 800ml disposable collection Jar
  • Integrated bacteria filter to prevent back flow
  • Personal carry bag
  • 2 meter suction tubing
  • Power cord
  • Battery
  • 12 V DC car adaptor
  • Multi-voltage AC and DC Car Charger

Areas of Use:

  • Bronchial / Oral Hygiene
  • Provides effective airways clearance
  • Helps to control infection

Please note:Please make sure filter is always dry and clean to prevent damage to internals of Suction Unit.

Product Documentation



Warranty:

  • Two-years limited, excluding internal battery and collection container
  • Internal Battery 90 days
Type Value
Unit Dimensions (H x W x D) 21.1 x 20.3 x 21.6 cm
Unit Weight 7314P model 3 kg
Vacuum Range 0 to 550 mmhg
Air flow 27 l/min
Operating Temperature Range 0° C - 40˚ C
Electrical Requirements 100 - 240 V AC, 50 / 60 Hz
SKU Dev7314P-NE
Barcode # 7314P-NE
Brand DeVilbiss
Unit Of Measure Each
