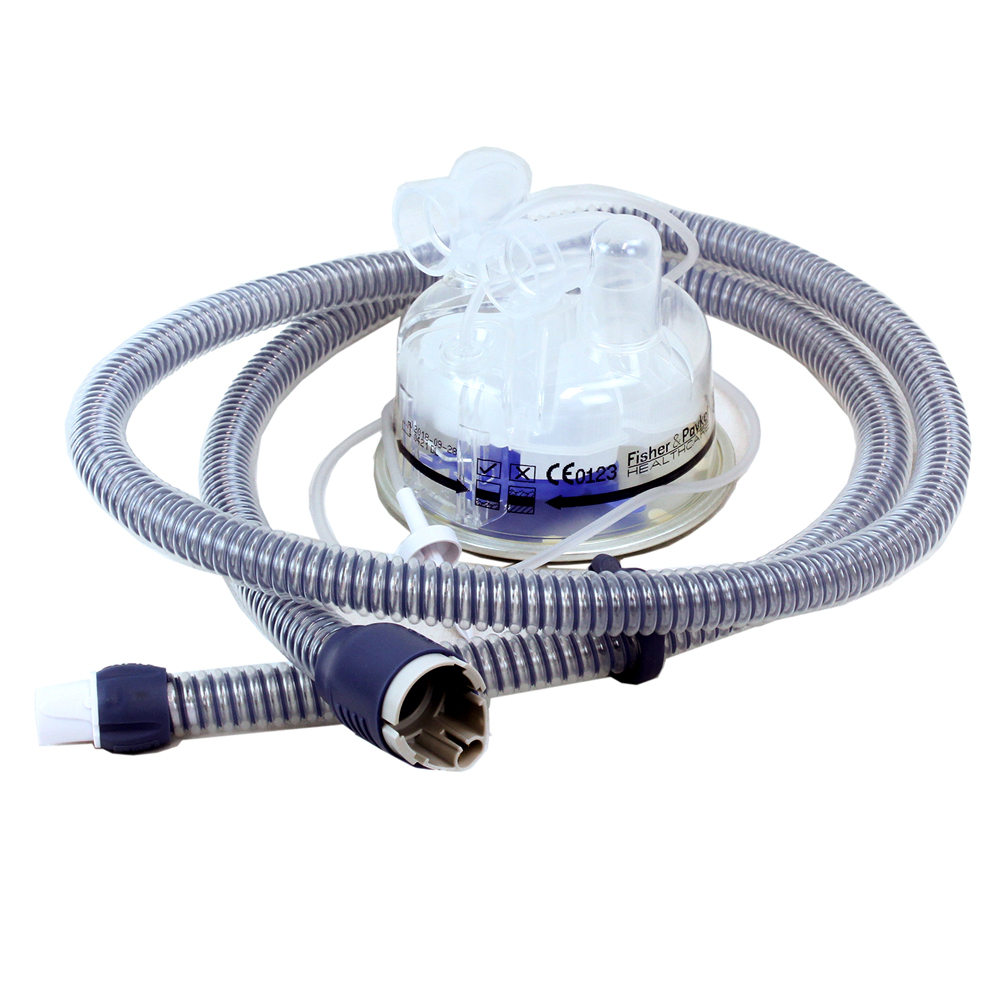

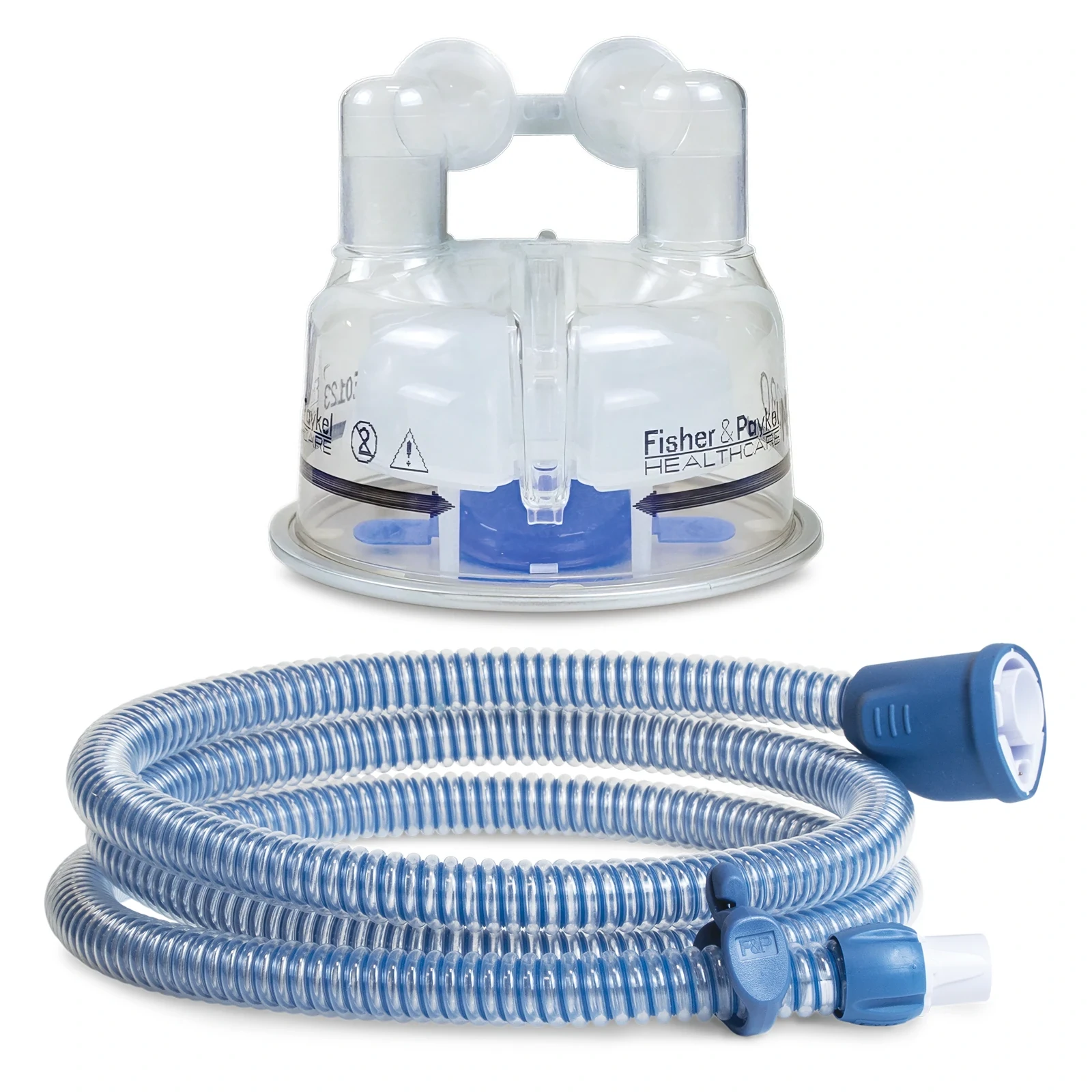

MyAIRVO 2 AirSpiral Tubing and MR290 Chamber

Sold as Each

AirSpiral Tubing and MR290 Chamber are suitable for use with the MyAIRVO 2 Humidifier. The AirSpiral Tube offers a heating spiral tubing, warms the air that passes through the tube and resolve the peculiar sounds and cold drips that are common with other heated tubes. AirSpiral also produces 93% less condensation that helps the delivery system in giving patient optimal care.

This is also known as MYAIRVOKIT1 that is for use at flows from 2 to 60 L/min depending on the patient interface. Compatible patient interfaces: nasal cannula, tracheostomy direct connection, mask adapter.

Features:

MR290 Humidification Chamber

• Auto-refilling Chamber
• Dual-float mechanism for added safety to prevent the chamber overfilling
• Consistent compressible volume allows for consistent delivery of the prescribed waveform

AirSpiral Tube

• Connects with both Optiflow & Optiflow Junior interfaces
• No external probes, cables, or adaptors required
• Comes with molded clips to attach tubing to clothes or bedding to assist with tube placement
• 6 feet long
• Integrated temperature sensor

Suggested Use:

• Assemble and connect water chamber
• Ensure water level is rising but not going over the maximum water level
• Connect breathing tube to myAIRVO 2
• Make sure blue connector is fully located into place
• Connect breathing tube to patient interface once the system has warmed up
• Position breathing tube below patient interface so that condensate flows away from the patient
• Connect breathing tube clip to patient clothing or bedding
  • Note: Connecting to patient clothing may not be suitable for all patient groups
• This product is intended to be used for a maximum of 60 days for home and long-term care facility use, provided that the myAirvo cleaning and maintenance instructions are followed
• Do not soak, wash or sterilize

To avoid burns:

• Do not allow the breathing tube to remain in direct contact with skin for prolonged periods of time
• Do not use in the presence of a naked flame, to avoid fires
• Do not add heat to any part of the breathing tube e.g. covering with a blanket

To prevent condensation:

• Use in a room warmer than 18°C (64°F)
• Remove/minimize the impact of anything that may cool the heated breathing tube, e.g. a fan, air conditioning, open window

To manage excessive condensation:

• Place the myAIRVO below patient head height
• Drain condensate back into the water chamber
• At higher target flow settings it may be necessary to first reduce the target flow setting to 30 L/min, to ensure that the condensate drains safely and effectively
• Disconnect the patient interface from the heated breathing tube
• Lift the patient end of the heated breathing tube, allowing the condensate to run into the water chamber

Warning:

• For single patient use only
• Reuse may result in transmission of infectious substances
• Attempting to reprocess will result in degradation of materials and render the product defective
• Using the breathing tube for longer than the specified time can result in serious injury including infection
• Do not use the Auto-fill Chamber if it has been dropped or been allowed to run dry as this could lead to the chamber over-filling
• Do not use the Auto-fill Chamber if the waterlevel rises above the maximum water level as this may lead to water entering the patient's airway
• Never operate the unit if the breathing tube has been damaged with holes, tears or kinks
• Do not block the flow of air through the unit and breathing tube
• Avoid contact with chemicals, cleaning agents, or hand sanitizers
• Use only USP sterile/distilled water for inhalation, or equivalent when using the Auto-fill Chamber
• Use of a non-approved accessory could impair performance or compromise safety
